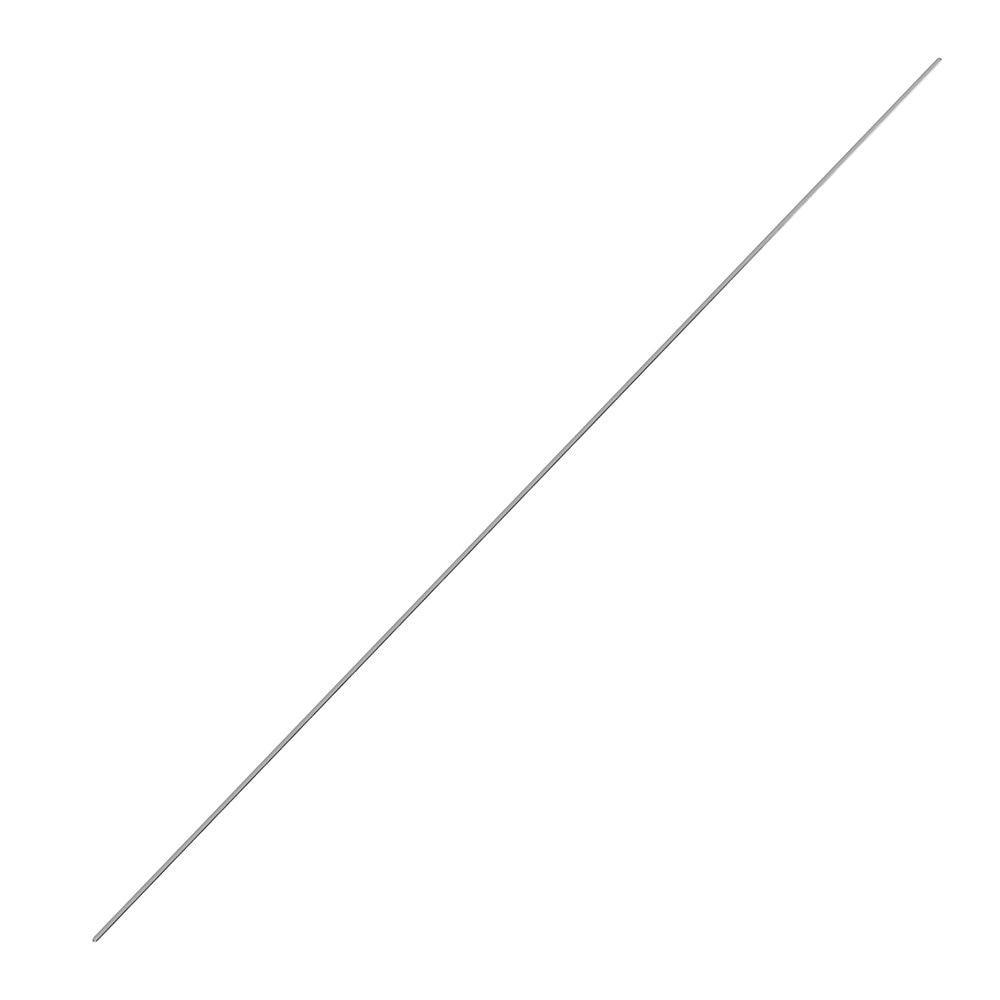

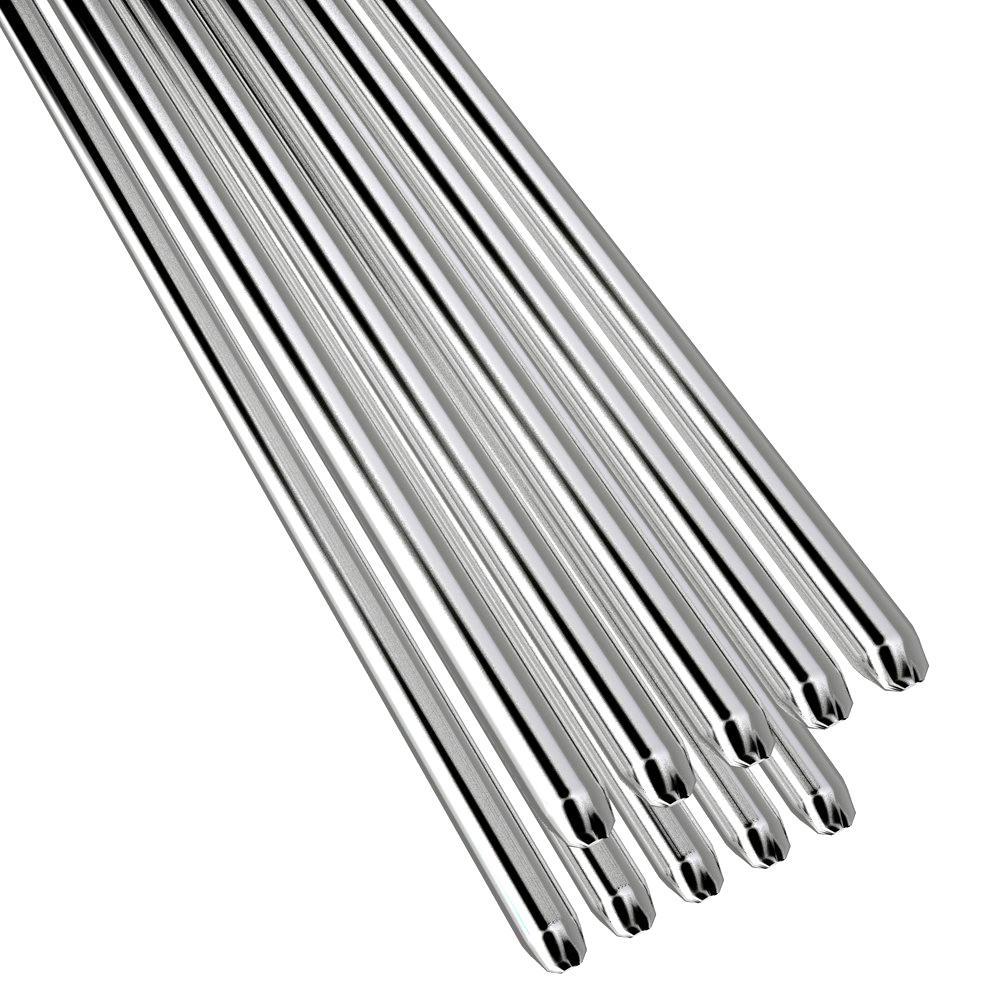

Skanto | Single Aluminum Welding Rod

Do you want an easy and quick way to weld aluminum?

The  Single Welding Rod  is a  high quality special Aluminum Alloy rod  used for  welding/brazing primarily aluminum and aluminum alloys  but can also be used for  brazing other non-magnetic metals except stainless steel.  Its  corrosion resistance  is excellent and  has minimal or no distortion  to the base material.

Features:

• Excellent welding effect -  With full & even welding effect due to internal powder. With low melting temperature (647℃～658℃), good weldability and corrosion resistance, high thermal conductivity, high electrical conductivity and excellent machining performance.
• Very wide application -  It is mainly used for argon arc welding and filler material for pure aluminum, connection with aluminum bus and guide rod in electrolytic aluminum plant and electric power, chemistry, food, etc.
• No need for solder powder -  You don't need to use other flux powder with aluminum alloy as the welding core and coating as the salt base. Very convenient and easy to weld.
• Wide application in life -  Suitable for welding or surfacing of alloy with high strength, good formability & good corrosion resistance.
• Light weight & small size -  Size of 500*2mm & weight of 3.5g, very easy to bend & carry.
• Applications include truck beds, loading ears, docks, diamond plates, irrigation pipes, engine blocks, transmission housings, etc.

How to use:

Step 1:  Clean and polish the physical surface.
Step 2:  Heat the surface of the base material, until the temperature of the wire reaches the operating temperature of 380℃～400℃, then you can rely on the anchored metal heat transfer welding wire to form welds, do not use the flame to burn the wire, When the surface temperature of the base metal is sufficient, the wire can flow well and penetrate the metal capillaries.
Step 3:  When repairing thin aluminum, as long as the aluminum base metal is heated to the appropriate working temperature, you can use the wire back and forth friction melting to form a weld, just with a metal brush melt the welding wire to weld at the weld.
Step 4:  Use propane gas to weld small objects, use industrial gas or induction heating machine to heat and weld large objects, natural slow cooling after welding.

Specifications:

Material: Aluminum
Color: Silver
Melting temperature: 647℃～658℃
Recommended for welding or brazing aluminum alloy: 1060, 1350, 3003, 3004, 3005, 5005, 5050, 6053, 6061,
6951, 7005, and casting alloys 710.0 and 711.0

Package includes: *  10pcs(1.6mm) x Single Welding Rod
